Cy7 NHS ester (non-sulfonated)
Labeling of amino-groups in biomolecules.

Catalog No.A8104
Size Price Stock Qty
10mM (in 1mL DMSO)
$460.00
In stock
Cy7 NHS ester 5mg
$210.00
In stock
Cy7 NHS ester 25mg
$410.00
In stock

Tel: +1-832-696-8203

Email: [email protected]

Worldwide Distributors



Sample solution is provided at 25 µL, 10mM.

Product Citations

1. Liang X, Li X,et al. "Nanoparticles with CD44 Targeting and ROS Triggering Properties as Effective in Vivo Antigen Delivery System." Mol Pharm. 2018 Feb 5;15(2):508-518. PMID:29323913

Quality Control

Quality Control & MSDS

View current batch:

Chemical structure

Cy7 NHS ester

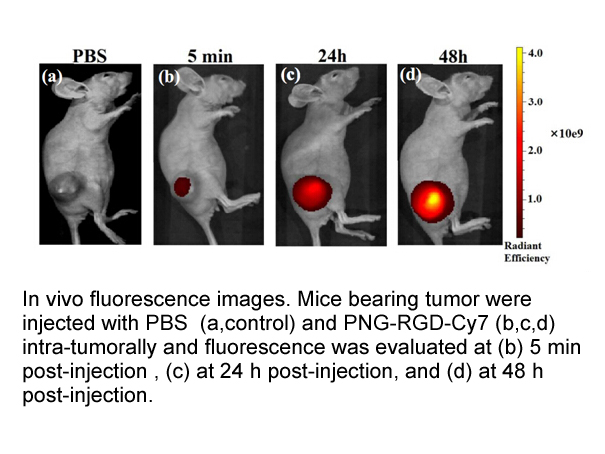

Related Biological Data

Cy7 NHS ester (non-sulfonated)

Related Biological Data

Cy7 NHS ester (non-sulfonated)

Cy7 NHS ester (non-sulfonated) Dilution Calculator

Concentration (start)
x
Volume (start)
=
Concentration (final)
x
Volume (final)



C1
V1
C2
V2

calculate

Cy7 NHS ester (non-sulfonated) Molarity Calculator

Mass
=
Concentration
x
Volume
x
MW*



g/mol

calculate

Chemical Properties

Cas No. 1432019-64-1 SDF Download SDF
Synonyms N/A
Chemical Name N/A
Canonical SMILES CC1(C)C(/C=C/C(CCC/2)=CC2=C\C=C3N(C)C4=CC=CC=C4C\3(C)C)=[N+](CCCCCC(ON(C5=O)C(CC5)=O)=O)C6=CC=CC=C61.FB(F)F.[F-]
Formula C41H48BF4N3O4 M.Wt 733.64
Solubility >34.1mg/mL in DMSO Storage 24 months after receival at -20°C in the dark. Transportation: at room temperature for up to 3 weeks. Avoid prolonged exposure to light. Desiccate.
Shipping Condition Evaluation sample solution : ship with blue ice.All other available size: ship with RT , or blue ice upon request
General tips For obtaining a higher solubility , please warm the tube at 37 ℃ and shake it in the ultrasonic bath for a while.Stock solution can be stored below -20℃ for several months.

Spectral properties

Excitation max (nm) 750 Emission max (nm) 773
Extinction Coefficient (M-1cm-1) 199000 Quantum Yield 0.3
CF260 0.022 CF280 0.029

Application

Non-sulfonated cyanines are available for the labeling of many targets including:

• Soluble proteins, which are tolerant to addition of organic co-solvent • Fluorescence polarization (FP)
• Antibodies (with 5-10% of DMSO/DMF) • Fluorescence resonance energy transfer (FRET)
• DNA and oligonucleotides • Time-resolved fluorescence energy transfer (TR-FRET)
• Peptides • Fluorescence intensity (FI)
• Many small molecules
• Reactions in organic media (dichloromethane, acetonitrile)

Background

Cy7 NHS ester, also called Cy7 monofunctional N-hydroxysuccinimide ester or Cy7-NHS [1], is a near-infrared fluorescent [2] and soluble sulfonated cyanine dye [3] with a molecular weight of 828 Da[2], able to be dissolved in DMSO [1] and ready for conjugation to proteins [4]. Cy7 NHS ester acts as a donor of Cy7 [5]. Cy7 has an emission maximum at 767nm, an absorption maximum at 743nm and its ε743=200,000 cm-1M-1 [4]. Compared with Cy5.5, Cy7 has fewer sulfonate groups and an extra methine group that contributes to hydrophobicity. Antibodies labeled with either Cy7 or Cy5.5 succinimidyl esters have similar quenching efficiencies [5].

N-acylation can occur between a Cy7 NHS ester and a primary amino group. This type of reaction is also widely used to allow amide formation under milder conditions without base or coupling reagent [6]. Most derivatives of non-sulfonated cyanines have low aqueous solubility except for hydrochlorides of hydrazides and amines. For biomolecule labeling, using of organic co-solvent (5-20% of DMF or DMSO) to dissolve this molecular is necessary for efficient reaction. Cyanine dye should be dissolved in organic solvent first, and added to a solution of biomolecule (protein, peptide, amino-labeled DNA) in appropriate aqueous buffer.

Incubated with Cy7 NHS, LS174T cells showed negligible signals in fluorescent microscopic images, it illustrated that possibility of nonspecific binding between free Cy7 and LS174T cells was negligible [1].

In vivo, injection of Cy7-NHS for 15 minutes resulted in the fluorescent signal in the whole body of a mouse bearing LS174T tumors, but from the blank mouse, no autofluorescence was detected. This result suggested the rapid distribution of Cy7 NHS in the body of the mouse. Subsequently, Cy7 NHS was rapidly eliminated from the kidney and no fluorescence was detected on the mouse 96 hours post-injection [1].

References:
[1].  Peng Zou, Songbo Xu, Stephen P. Povoski, et al. Near-Infrared Fluorescence Labeled Anti-TAG-72 Monoclonal Antibodies for Tumor Imaging in Colorectal Cancer Xenograft Mice. Mol Pharm., 2009, 6(2): 428-440.
[2].  Martin L. Brady, Raghu Raghavan, Deep Singh, et al. In vivo performance of a microfabricated catheter for intraparenchymal delivery. Journal of Neuroscience Methods, 2014, 229: 76-83.
[3].  Valeri Metelev, Surong Zhang, David Tabatadze, et al. The three-dimensional context of a double helix determines fluorescence of the internucleoside-tethered pair of fluorophores. Mol Biosyst., 2013, 9(10): 2447-2453.
[4].  Manfred Birchler, Giovanni Neri, Lorenzo Tarli, et al. Infrared photodetection for the in vivo localisation of phage-derived antibodies directed against angiogenic markers. Journal of Immunological Methods, 1999, 231: 239-248.
[5].  Benedict Law, Alejandro Curino, Thomas H. Bugge, et al. Design, Synthesis, and Characterization of Urokinase Plasminogen-Activator-Sensitive Near-Infrared Reporter. Chemistry & Biology, 2004, 11: 99-106.
[6].  M. Bai and D.J. Bornhop. Recent Advances in Receptor-Targeted Fluorescent Probes for In Vivo Cancer Imaging. Current Medicinal Chemistry, 2012, 19(1): 1-17.
