AZ505 SMYD2 inhibitor,potent and selective

Catalog No.B1255
Size Price Stock Qty
5mg
$238.00
In stock
10mg
$361.00
In stock
25mg
$523.00
In stock
50mg
$855.00
In stock
100mg
$1,330.00
In stock

Tel: +1-832-696-8203

Email: [email protected]

Worldwide Distributors

Sample solution is provided at 25 µL, 10mM.

Quality Control

Quality Control & MSDS

View current batch:

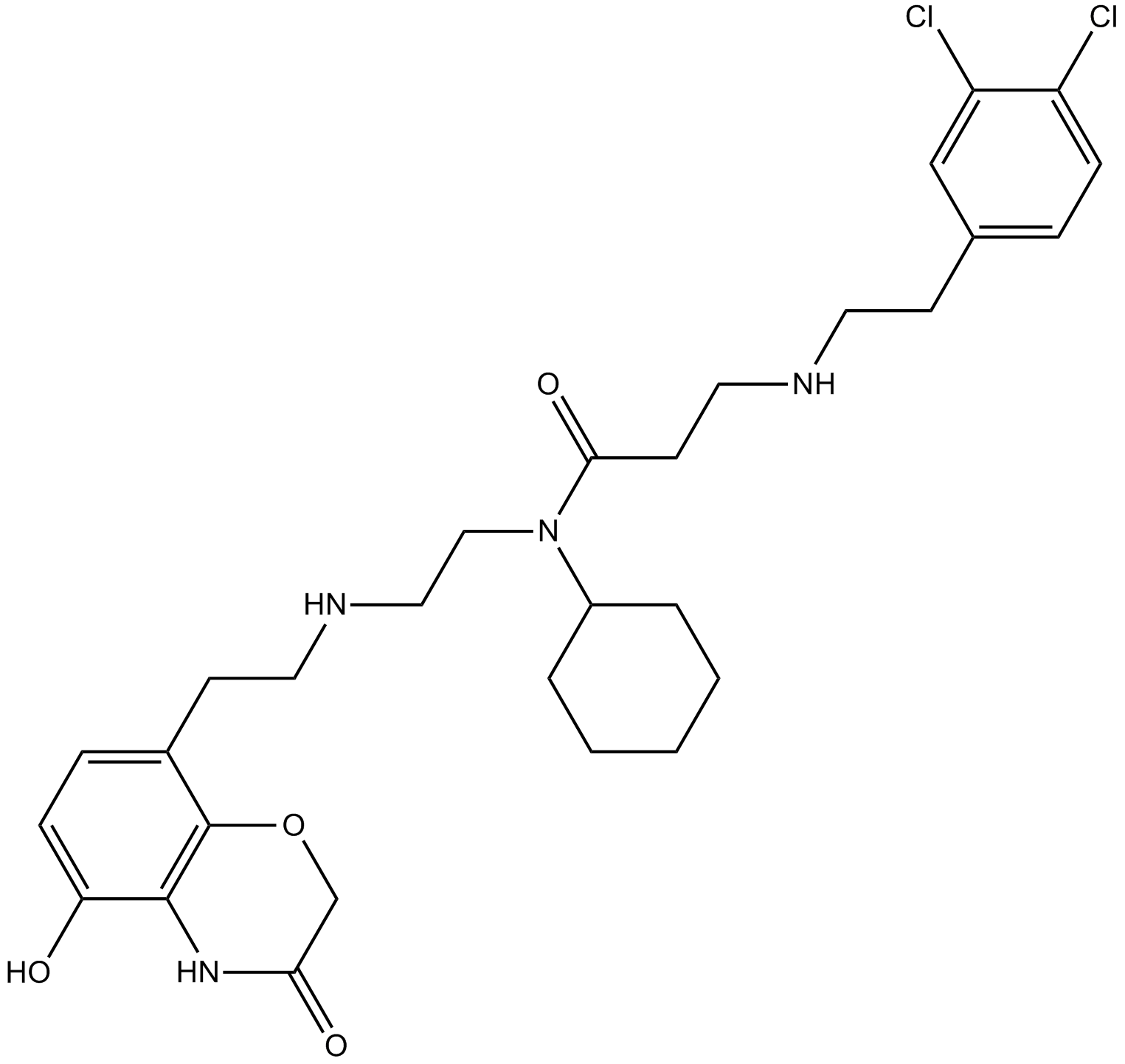

Chemical structure

AZ505

Protocol

Kinase experiment [1]:

Inhibitory activities

AZ505 binding to SMYD2 and inhibits SMYD2-mediated methylation in cells in the presence of SAM. In gastric cancer and ESCC, overexpression of SMYD2 protein was detected in 38.1% and 76.5% of patients, respectively. AZ505 inhibiting SMYD2 may be a key therapeutic strategy for these disease.

Cell experiment [1]:

Cell

N/A

Preparation method

Soluble in DMSO. General tips for obtaining a higher concentration: Please warm the tube at 37℃ for 10 minutes and/or shake it in the ultrasonic bath for a while. Stock solution can be stored below -20℃ for several months.

Reaction Conditions

N/A

Applications

AZ505 inhibited SMYD2-mediated methylation in cells with IC50 value of 0.12 μM and AZ505 binding to SMYD2 is competitive with the peptide substrate and uncompetitive with the cofactor. AZ505 also inhibited other histone methyltransferases, such as SMYD3 (IC50>83.3 mM), DOT1L (IC50>83.3 mM) and EZH2 (IC50>83.3 mM)

References:

[1] Ferguson AD, Larsen NA, Howard T, et dl. Structural basis of substrate methylation and inhibition of SMYD2. Structure. 2011 Sep 7;19(9):1262-73.

AZ505 Dilution Calculator

Concentration (start)
x
Volume (start)
=
Concentration (final)
x
Volume (final)



C1
V1
C2
V2

calculate

AZ505 Molarity Calculator

Mass
=
Concentration
x
Volume
x
MW*



g/mol

calculate

Chemical Properties

Cas No. 1035227-43-0 SDF Download SDF
Chemical Name N-cyclohexyl-3-[2-(3,4-dichlorophenyl)ethylamino]-N-[2-[2-(5-hydroxy-3-oxo-4H-1,4-benzoxazin-8-yl)ethylamino]ethyl]propanamide
Canonical SMILES C1CCC(CC1)N(CCNCCC2=C3C(=C(C=C2)O)NC(=O)CO3)C(=O)CCNCCC4=CC(=C(C=C4)Cl)Cl
Formula C29H38Cl2N4O4 M.Wt 577.54
Solubility Soluble in DMSO Storage Store at -20°C
General tips For obtaining a higher solubility , please warm the tube at 37 ℃ and shake it in the ultrasonic bath for a while.Stock solution can be stored below -20℃ for several months.
Shipping Condition Evaluation sample solution : ship with blue ice
All other available size: ship with RT , or blue ice upon request

Background

AZ505, a molecule identified from a high throughput chemical screen, is a potent and selective inhibitor of SET and MYND domain-containing 2 protein (SMYD2), a protein lysine methyltransferase catalyzing the methylation of both histone (H2B, H3 and H4) and non-histone protein substrates including the tumor suppressor proteins p53 and Rb, with the half maximal inhibition concentration IC50 and inhibition constant Ki values of 0.12 μM and 0.3 μM respectively [1].
AZ505 has been found to be a substrate competitive inhibitor of SMYD2, where it binds into the peptide binding groove of SMYD2 competing with the peptide substrates rather than the co-factor [1].
References:
[1] Ferguson AD, Larsen NA, Howard T, Pollard H, Green I, Grande C, Cheung T, Garcia-Arenas R, Cowen S, Wu J, Godin R, Chen H, Keen N. Structural basis of substrate methylation and inhibition of SMYD2. Structure. 2011 Sep 7;19(9):1262-73. doi: 10.1016/j.str.2011.06.011. Epub 2011 Jul 21.
