AZ505 ditrifluoroacetate SMYD2 inhibitor

Catalog No.B1256
Size Price Stock
5mg
$238.00
Please Inquire
10mg
$361.00
Please Inquire
25mg
$523.00
Please Inquire
50mg
$855.00
Please Inquire
100mg
$1,330.00
Please Inquire

Tel: +1-832-696-8203

Email: [email protected]

Worldwide Distributors

Sample solution is provided at 25 µL, 10mM.

Quality Control

Quality Control & MSDS

View current batch:

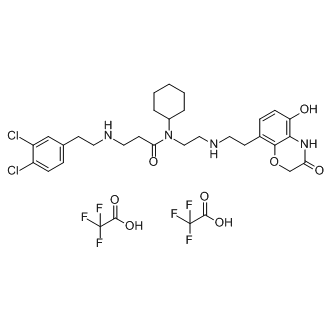

Chemical structure

AZ505 ditrifluoroacetate

Protocol

Kinase experiment [1]:

Inhibitory activities

AZ505 binding to SMYD2 and inhibits SMYD2-mediated methylation in cells in the presence of SAM. In gastric cancer and ESCC, overexpression of SMYD2 protein was detected in 38.1% and 76.5% of patients, respectively. AZ505 inhibiting SMYD2 may be a key therapeutic strategy for these disease.

Cell experiment [1]:

Cell

N/A

Preparation method

Soluble in DMSO. General tips for obtaining a higher concentration: Please warm the tube at 37℃ for 10 minutes and/or shake it in the ultrasonic bath for a while. Stock solution can be stored below -20℃ for several months.

Reaction Conditions

N/A

Applications

AZ505 inhibited SMYD2-mediated methylation in cells with IC50 value of 0.12 μM and AZ505 binding to SMYD2 is competitive with the peptide substrate and uncompetitive with the cofactor. AZ505 also inhibited other histone methyltransferases, such as SMYD3 (IC50>83.3 mM), DOT1L (IC50>83.3 mM) and EZH2 (IC50>83.3 mM)

References:

[1] Ferguson AD, Larsen NA, Howard T, et dl. Structural basis of substrate methylation and inhibition of SMYD2. Structure. 2011 Sep 7;19(9):1262-73.

AZ505 ditrifluoroacetate Dilution Calculator

Concentration (start)
x
Volume (start)
=
Concentration (final)
x
Volume (final)



C1
V1
C2
V2

calculate

AZ505 ditrifluoroacetate Molarity Calculator

Mass
=
Concentration
x
Volume
x
MW*



g/mol

calculate

Chemical Properties

Cas No. 1035227-44-1 SDF Download SDF
Chemical Name N-cyclohexyl-3-((3,4-dichlorophenethyl)amino)-N-(2-((2-(3,5-dihydroxy-2H-benzo[b][1,4]oxazin-8-yl)ethyl)amino)ethyl)propanamide bis(2,2,2-trifluoroacetate)
Canonical SMILES ClC1=C(Cl)C=C(CCNCCC(N(C2CCCCC2)CCNCCC3=C4C(N=C(O)CO4)=C(O)C=C3)=O)C=C1.FC(F)(F)C(O)=O.FC(F)(F)C(O)=O
Formula C33H40Cl2F6N4O8 M.Wt 805.59
Solubility Soluble in DMSO Storage Store at -20°C
General tips For obtaining a higher solubility , please warm the tube at 37 ℃ and shake it in the ultrasonic bath for a while.Stock solution can be stored below -20℃ for several months.
Shipping Condition Evaluation sample solution : ship with blue ice
All other available size: ship with RT , or blue ice upon request

Background

AZ505 is a potent SET and MYND domain-containing 2 protein (SMYD2) inhibitor that selectively inhibits the enzymatic activity of SMYD2 (IC50: 0.12 μM) over a variety of other protein lysine methyltransferases (IC50 > 83.3 μΜ), including SMYD3, DOT1L, EZH2, GLP, G9A and SET7/9 [1].

AZ505 contains three distinct moieties: the benzooxazinone group which interacts with the lysine-binding channel of SMYD2; the cyclohexyl group which interacts with the core SET and I-SET domains of SMYD2; and the dichlorophenethyl group which extends across the peptide binding groove of SMYD2 [1].

The X-ray crystallographic analysis has revealed that AZ505 binds into the peptide binding groove of SMYD2 competing with the peptide substrates [1].

Reference

References:
[1] Ferguson AD, Larsen NA, Howard T, Pollard H, Green I, Grande C, Cheung T, Garcia-Arenas R, Cowen S, Wu J, Godin R, Chen H, Keen N. Structural basis of substrate methylation and inhibition of SMYD2. Structure. 2011 Sep 7;19(9):1262-73. doi: 10.1016/j.str.2011.06.011. Epub 2011 Jul 21.
