Cyclic di-GMP

Catalog No.
B7839
second messenger
Grouped product items
Size Price Stock Qty
500ug
$175.00
In stock
1mg
$335.00
In stock
For scientific research use only and should not be used for diagnostic or medical purposes.

Tel: +1-832-696-8203

Email: [email protected]

Worldwide Distributors

Background

Cyclic di-GMP (CAS: 61093-23-0) is a broadly distributed cyclic dinucleotide second messenger in bacteria. It couples two guanylates through two 3′5′ phosphodiester bonds in a head-to-tail cyclization. It also acts as a STING agonist and belongs, with cGAMP, to the cyclic dinucleotide family.

In host cells, cyclic di-GMP binds the STING ligand-binding domain, driving STING dimerization and translocation to the Golgi, where STING recruits and activates TBK1; TBK1 phosphorylates IRF3 and IKKβ to launch type I interferon and NF-κB pathways. In bacteria, cyclic di-GMP regulates biofilm formation, motility, and virulence; its identity as a STING ligand lets the host read this bacterial cyclic dinucleotide as an infection signal.

Cyclic di-GMP serves as a STING agonist and is often encapsulated in delivery systems such as liposomes for tumor immunotherapy and vaccine adjuvants; it also works as a research tool for activating STING with a microbial cyclic dinucleotide.

References:

Burdette DL, Sasaki Y, Deng W, et al. STING is a direct innate immune sensor of cyclic di-GMP. Nature. 2011;478(7370):515-518.

Nakamura T, et al. Liposomes loaded with a STING pathway ligand, cyclic di-GMP, enhance cancer immunotherapy against metastatic melanoma. J Control Release. 2015;216:149-157.

Product Citation

Chemical Properties

Physical AppearanceA crystalline solid
StorageStore at -20°C
M.Wt690.41
Cas No.61093-23-0
Formula C20H24N10O14P2
Solubilityinsoluble in DMSO; insoluble in EtOH; ≥20.85 mg/mL in H2O
Chemical Name9,9'-((2R,3R,3aS,7aR,9R,10R,10aS,14aR)-3,5,10,12-tetrahydroxy-5,12-dioxidodecahydrodifuro[3,2-d:3',2'-j][1,3,7,9,2,8]tetraoxadiphosphacyclododecine-2,9-diyl)bis(2-amino-1H-purin-6(9H)-one)
Canonical SMILESO=C1NC(N)=NC2=C1N=CN2[C@H](O[C@@]([C@@]3([H])OP(O)(OC[C@]([C@@]4([H])OP5(O)=O)(O[C@@H](N6C(N=C(N)NC7=O)=C7N=C6)[C@@H]4O)[H])=O)(CO5)[H])[C@@H]3O
Shipping ConditionSmall Molecules with Blue Ice, Modified Nucleotides with Dry Ice.
General tips We do not recommend long-term storage for the solution, please use it up soon.

Quality Control

Quality Control & MSDS

View current batch:

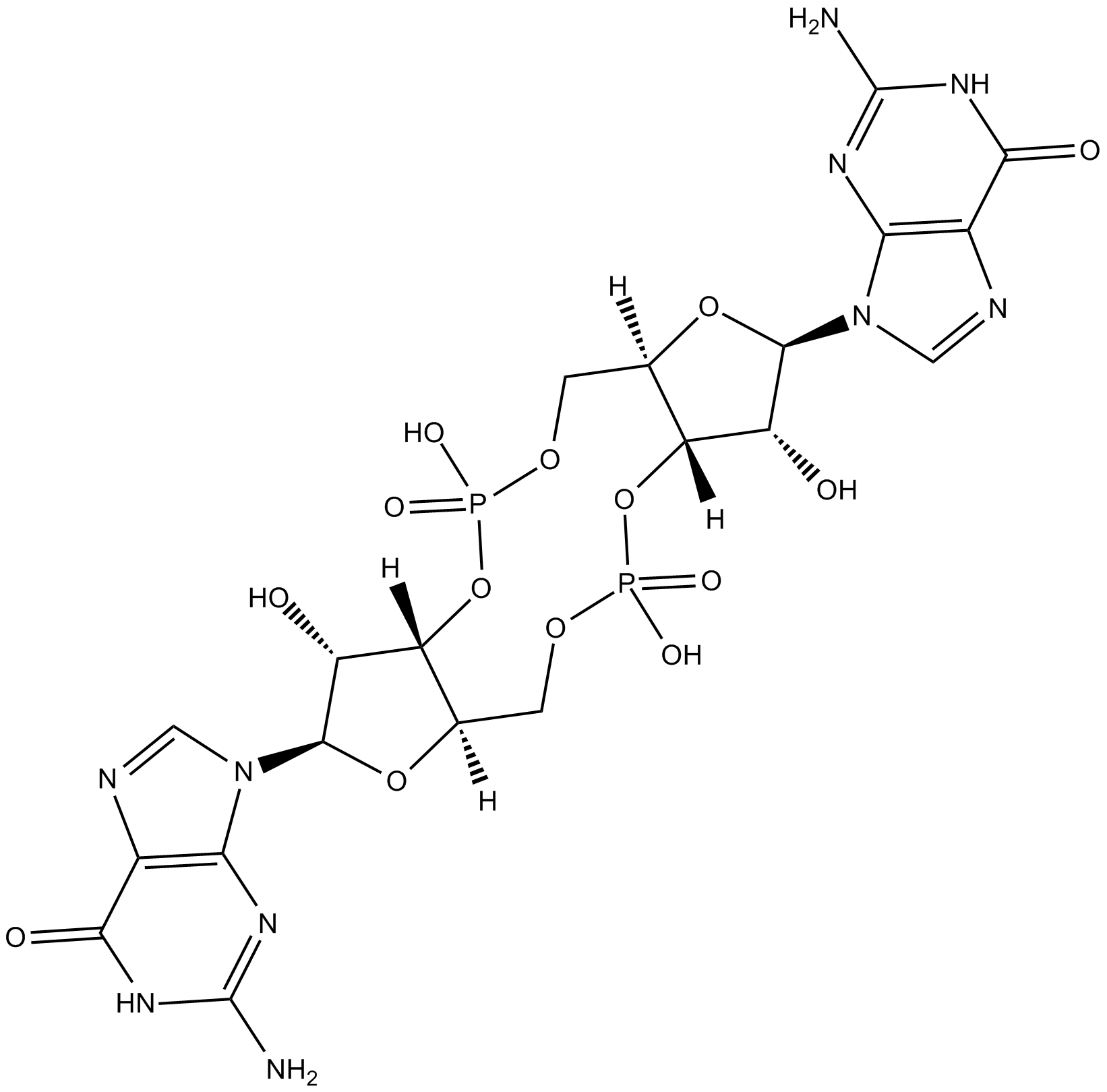

Chemical structure

Cyclic di-GMP


User Guide
