Cy7 carboxylic acid (non-sulfonated)

Catalog No.
A8135
Non-reactive fluorophore, for control experiments, and for calibration
Grouped product items
SizePriceStock Qty
5mg
$520.00
Ship with 10-15 days
25mg
$1,020.00
Ship with 10-15 days
For scientific research use only and should not be used for diagnostic or medical purposes.

Tel: +1-832-696-8203

Email: [email protected]

Worldwide Distributors

Background

Cy7 carboxylic acid is a near-infrared fluorescent dye which has low aqueous solubility. As for coupling and labeling reactions, pre-activated Cy7 NHS ester or water-soluble sulfo-Cy7 NHS ester would be considered. For biomolecule labeling, the labeling reagent has low aqueous solubility, using of organic co-solvent to dissolve this molecular is necessary for efficient reaction. First, Cyanine dye should be dissolved in organic solvent and then added to a solution of biomolecule in appropriate aqueous buffer.

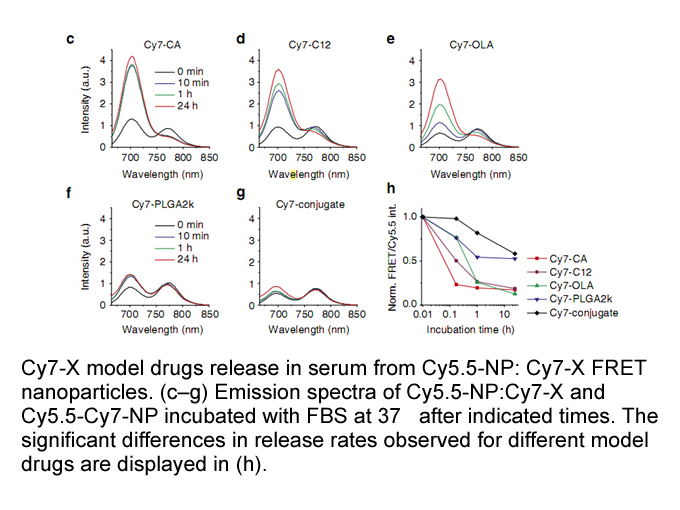

Cy7, together with carboxylic acid (CA) make up the model drugs. On the basis of this, the study was able to estimate the amount of Cy7 carboxylic acid on the particle through direct emission spectra measurements [1].

Reference:
[1] Zhao, Y. ; Fay, F.; Hak, S.; Manuel Perez-Aguilar, J.; Sanchez-Gaytan, B.L.; Goode, B.; Duivenvoorden, R.; de Lange Davies, C.; Bjrky, A.; Weinstein, H.; Fayad, Z.A.; Pérez-Medina, C.; Mulder, W.J.M. Augmenting drug-carrier compatibility improves tumour nanotherapy efficacy. Nature Communications, 2016,7,11221.

Chemical Properties

Storage24 months after receival at -20°C in the dark. Transportation: at room temperature for up to 3 weeks. Avoid prolonged exposure to light. Desiccate.
M.Wt585.22
FormulaC37H45ClN2O2
Solubilitysoluble in organic solvents (DMSO, DMF, dichloromethane), low solubility in water
Chemical Name6-[(2E)-3,3-dimethyl-2-[(2E)-2-[3-[(E)-2-(1,3,3-trimethylindol-1-ium-2-yl)ethenyl]cyclohex-2-en-1-ylidene]ethylidene]indol-1-yl]hexanoic acid
SDFDownload SDF
Canonical SMILESCC1(C2=CC=CC=C2[N+](=C1C=CC3=CC(=CC=C4C(C5=CC=CC=C5N4CCCCCC(=O)O)(C)C)CCC3)C)C
Shipping ConditionSmall Molecules with Blue Ice, Modified Nucleotides with Dry Ice.
General tips We do not recommend long-term storage for the solution, please use it up soon.

Spectral properties

Excitation max (nm) 750 Emission max (nm) 773
Extinction Coefficient (M-1cm-1) 199000 Quantum Yield N/A
CF260 0.022 CF280 0.029

Quality Control

Quality Control & MSDS

View current batch:

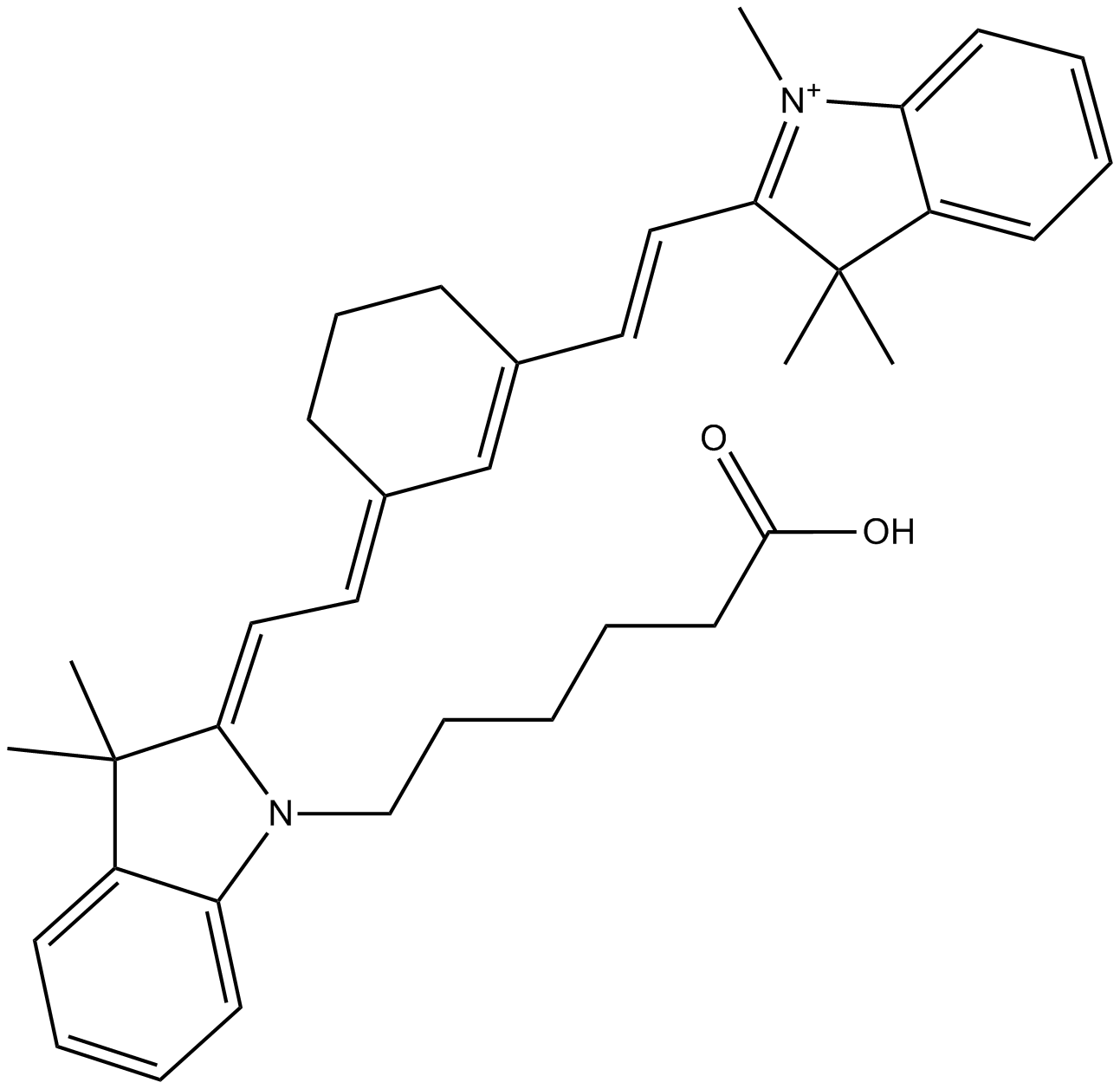

Chemical structure

Cy7 carboxylic acid (non-sulfonated)

Related Biological Data

Cy7 carboxylic acid (non-sulfonated)
