Cy3 azide (non-sulfonated)

Catalog No.
A8111
used for Click chemistry to label alkyne-modified oligonucleotides
Grouped product items
SizePriceStock Qty
5mg
$460.00
In stock
25mg
$1,350.00
In stock
For scientific research use only and should not be used for diagnostic or medical purposes.

Tel: +1-832-696-8203

Email: [email protected]

Worldwide Distributors

Background

Cy3 azide is a non-sulfonated dye ready for the use in Click Chemistry reaction which can be detected by various fluorometers, imagers, and microscopes. The reagent can be detected by naked eye on gels because of inherently high extinction coefficient. For biomolecule labeling, using of organic co-solvent to dissolve this molecular is necessary for efficient reaction. Product is available both as solid compound, and as 10 mM solution in DMSO. First, Cyanine dye should be dissolved in organic solvent and then added to a solution of biomolecule in appropriate aqueous buffer. Water-soluble version of this reagent is also available. Most derivatives of non-sulfonated cyanines have low aqueous solubility except for hydrochlorides of hydrazides and amines.

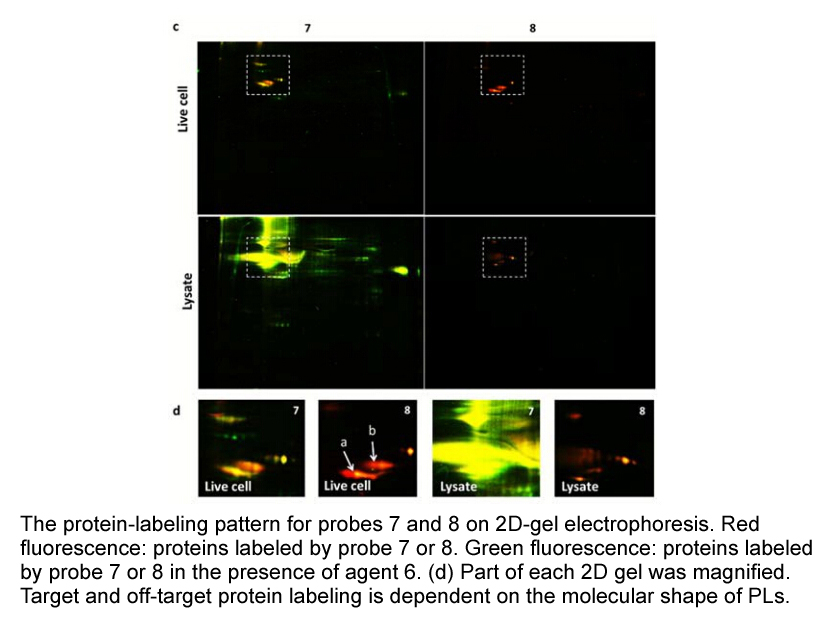

In protein analysis, proteins labeled by Cy3 azide couple with Cy5 azide can substantially simplifies the target identification process than only one fluorescent dye [1].

Reference:
[1].  Park, H.; Koo, J.Y.; Srikanth, Y.V.V.; Oh, S.; Lee, J.; Park, J.; Park, S.B. Nonspecific protein labeling of photoaffinity linkers correlates with their molecular shapes in living cells. Chemical Communications, 2016, 52(34), 5828–5831.

Chemical Properties

Physical AppearanceA solid
Storage24 months after receival at -20°C in the dark. Transportation: at room temperature for up to 3 weeks. Avoid prolonged exposure to light. Desiccate.
M.Wt575.19
FormulaC33H43ClN6O
Solubility≥28.75 mg/mL in DMSO; ≥14.77 mg/mL in H2O with ultrasonic; ≥77.2 mg/mL in EtOH with ultrasonic

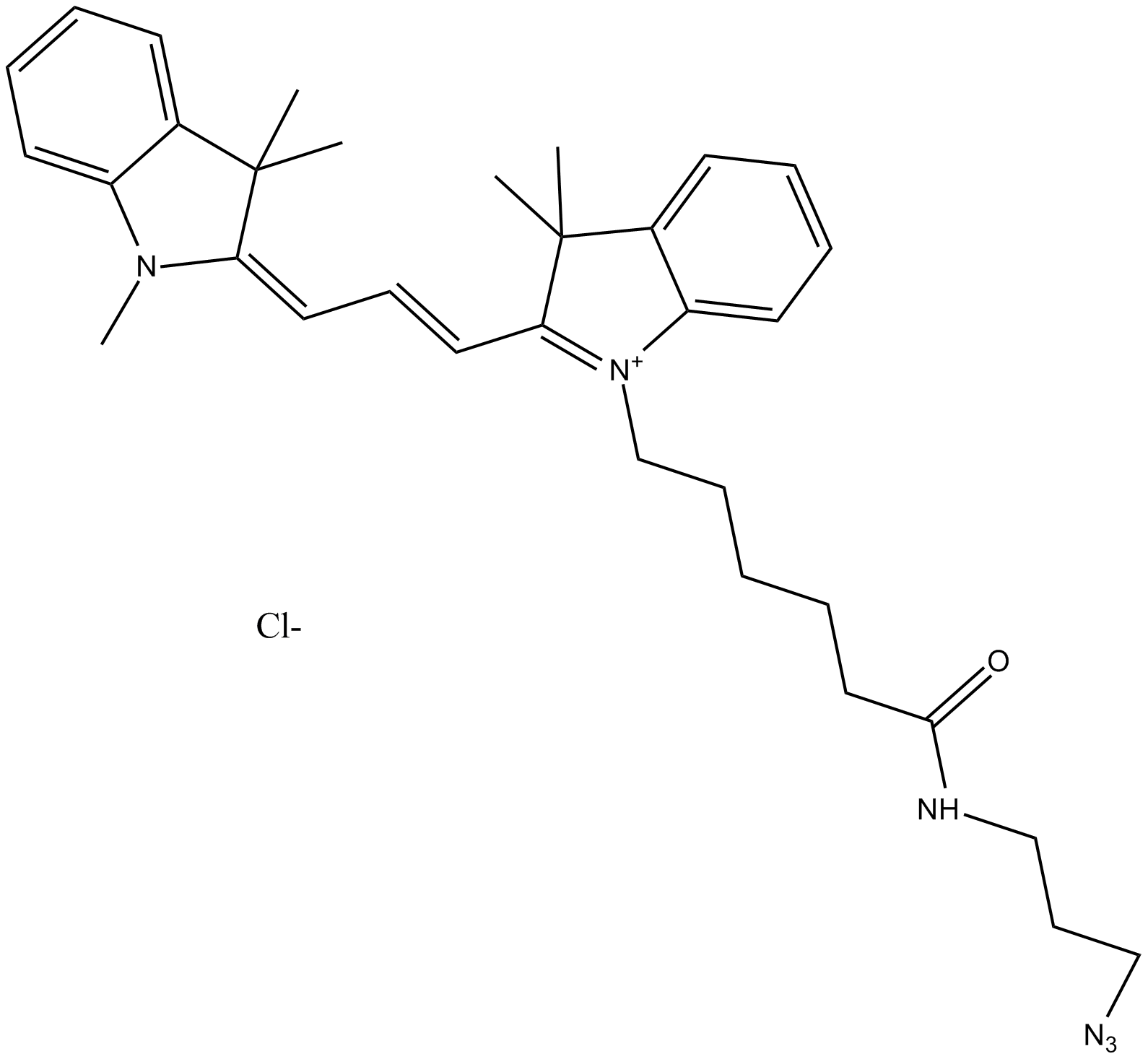

Chemical Name1-(6-((3-azidopropyl)amino)-6-oxohexyl)-3,3-dimethyl-2-((1E,3E)-3-(1,3,3-trimethylindolin-2-ylidene)prop-1-en-1-yl)-3H-indol-1-ium
SDFDownload SDF
Canonical SMILESCC1(C)C2=CC=CC=C2[N+](CCCCCC(NCCCN=[N+]=[N-])=O)=C1/C=C/C=C3C(C)(C)C4=CC=CC=C4N\3C
Shipping ConditionSmall Molecules with Blue Ice, Modified Nucleotides with Dry Ice.
General tips We do not recommend long-term storage for the solution, please use it up soon.

Spectral properties

Excitation max (nm) 555 Emission max (nm) 570
Extinction Coefficient (M-1cm-1) 150000 Quantum Yield 0.31
CF260 0.04 CF280 0.09

Quality Control
