Phos binding reagent acrylamide
An equivalent to Phos-tag acrylamide. Separation of phosphorylated and non-phosphorylated proteins

Catalog No.F4002
Size Price Stock Qty
In stock
In stock
In stock

Tel: +1-832-696-8203

Email: [email protected]

Worldwide Distributors


Sample solution is provided at 25 µL, 10mM.

Product Citations

1. Yu J, Deng T, et al. "Structural basis for protein phosphatase 1 recruitment by glycogen-targeting subunits." FEBS J. 2018 Dec;285(24):4646-4659. PMID:30422398
2. Yin Y, Wu S, et al. "The MAPK kinase BcMkk1 suppresses oxalic acid biosynthesis via impeding phosphorylation of BcRim15 by BcSch9 in Botrytis cinerea." PLoS Pathog. 2018 Sep 13;14(9):e1007285. PMID:30212570
3. Sauvé V, Sung G, et al. "Mechanism of parkin activation by phosphorylation." Nat Struct Mol Biol. 2018 Jul;25(7):623-630. PMID:29967542


Protein phosphorylation is an important covalent post-translational modification that can alter the structural conformation of a protein, which then regulates the function, location and specific binding of the target protein. Many cellular processes are regulated by the reversible phosphorylation of proteins and 30% of the proteins are likely to be phosphorylated at some point during their existence.

The determination of the phosphorylation state of proteins is important for defining protein kinase substrates and revealing the activation state of signal transduction pathways. Methods for determining the phosphorylation status of proteins are thus have important implications in the understanding of diverse biological and pathophysiological processes, such as signal transduction pathways, cancer and other diseases.

Phos binding reagents are specific and selective phosphate-binding reagents, and exhibit preferential ionic interactions with phosphorylated ions on phosphorylated proteins or peptides at neutral pH. Phos binding reagent is a dinuclear metal (Zn2+ or Mg2+) complex.

Phos binding reagent acrylamide (PBR-A) is a specific reagent for separation of phosphorylated proteins using SDS-PAGE method.

Quality Control

Quality Control & MSDS

View current batch:

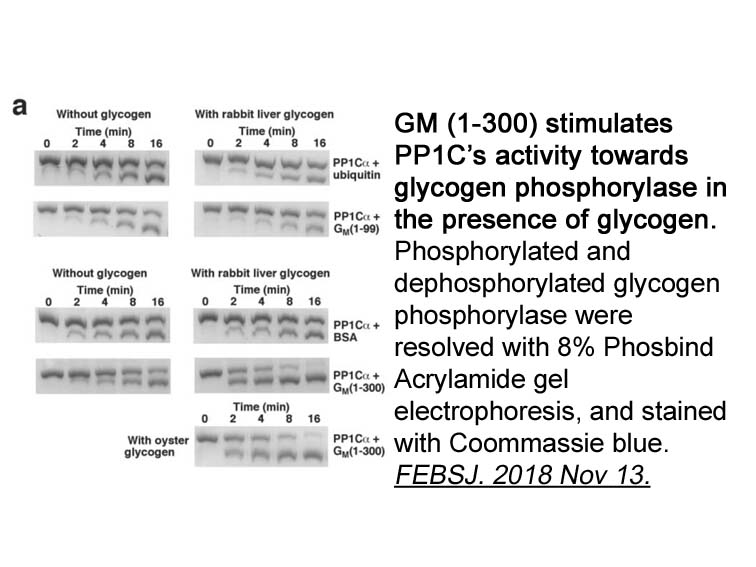

Related Biological Data

Phosbind Acrylamide

Related Biological Data

Phosbind Acrylamide

Related Biological Data

Phosbind Acrylamide

Related Biological Data

Phosbind Acrylamide

Related Biological Data

Phosbind Acrylamide

Phos binding reagent acrylamide Dilution Calculator

Concentration (start)
Volume (start)
Concentration (final)
Volume (final)


Phos binding reagent acrylamide Molarity Calculator



Chemical Properties

Cas No. N/A SDF N/A
Synonyms N/A
Chemical Name N/A
Canonical SMILES N/A
Formula C33H38N8O3 M.Wt 594.71
Solubility >29.7mg/mL in DMSO Storage 2-10℃
Shipping Condition Evaluation sample solution : ship with blue ice.All other available size: ship with RT , or blue ice upon request
General tips For obtaining a higher solubility , please warm the tube at 37 ℃ and shake it in the ultrasonic bath for a while.Stock solution can be stored below -20℃ for several months.

Basic structure of Phos binding reagents

• <Zn2+-Phos binding reagents>: a stable complex is formed with a phosphate group at the ratio of 1 to 1 at pH 5 ~ 8.

• <Mn2+-Phos binding reagents>: a stable complex is formed with a phosphate group at the ratio of 1 to 1 at around the pH 9.


1. Recognition of all phosphorylated forms of Tyr/Ser/Thr.

2. Followed by Western blotting and Mass analysis.

3. Simultaneous detection of phosphorylated/non-phosphorylated proteins using the total antibody without the anti phosphorylated protein.

4. Simply add Phos binding reagent acrylamide and MnCl2 solution* to acrylamide solution in the preparation of SDS-PAGE gel.

(*: Add 5.0 mM Phos binding reagent Acrylamide Aqueous Solution and 10 mM MnCl2 solution in equal amount in the gel).


1. M. J. Hubbard, P. Cohen. On target with a new mechanism for the regulation of protein phosphorylation. Trends Biochem. Sci. 18: 172 (1993).

2. B. Agnew et al. Compositions and methods for detection and isolation of phosphorylated molecules. US Patent # 7,102,005. (September 5, 2006).
